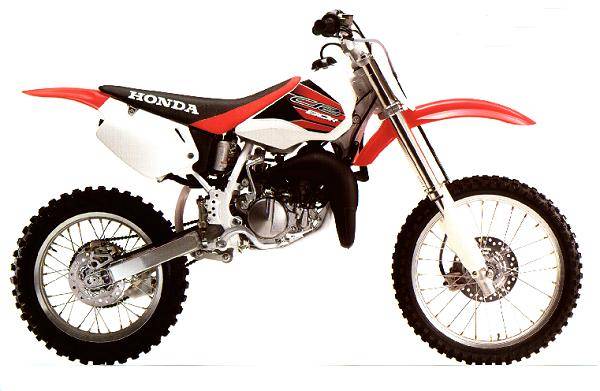

1999 Honda CR 80R

1999 Honda CR 80 R

CR 80 R

The 1999 CR 80R-Expert and CR 80R are the class of ultra-competitive 80cc motocross racing.

NEW FOR 1998

The 1999 CR 80R, and CR 80R EXPERT have all-new frame designs and revised suspensions to improve turning and overall ridability in this competitive class. All new frame geometry and layout result from steering head relocation (10mm rearward and 10mm down) to produce improved turning performance and straight-line tracking. New rear shock is 1mm shorter for improved handling and balance. together with revised damping force rates, the shock provides superior ride quality. New rear linkage rates improve compliance and provide better wheel control. New handlebar bend optimizes rider position and comfort.

1999 Honda Motocross Motorcycle Specifications

CR500R CR250R CR125R CR80R CR80RB
Engine Type Liquid cooled,
single cylinder,
two stroke Liquid cooled,
single cylinder,
two stroke with HPP Liquid cooled,
single cylinder,
two stroke with HPP Liquid cooled,
single cylinder,
two stroke Liquid cooled,
single cylinder,
two stroke
Displacement 491cc 249cc 125cc 83cc 83cc
Bore & Stroke 89 x 79mm 66.4 x 72mm 54 x 54.5mm 47 x 47.8mm 47 x 47.8mm
Compression Ratio 6.8 : 1 8.7 : 1 8.8 : 1 8.4 : 1 8.4 : 1
Carburetion 38mm flatslide 38mm flatslide 36mm flatslide 28mm piston-valve 28mm piston-valve
Ignition Solid state CD with electronic advance Solid state map-type digital with electronic advance Solid state map-type digital with electronic advance Solid state CD with electronic advance Solid state CD with electronic advance
Starting Kick Kick Kick Kick Kick
Transmission Close ratio 5 speed Close ratio 5 speed Close ratio 5 speed Close ratio 6 speed Close ratio 6 speed
Final Drive #520 Chain; 14T/49T #520 Chain; 13T/50T #520 Chain; 13T/51T #420 Chain; 15T/49T #420 Chain; 15T/55T
Suspension:
-Front 46mm inverted Kayaba^TM fork
with 20 position compression
and 18 position rebound damping,
12.2 inches of travel 47mm inverted Showa^TM fork
with 16 position compression
and 16 position rebound damping,
12.4 inches of travel 46mm inverted Kayaba^TM fork
with 20 position compression
and 18 position rebound damping,
12.1 inches of travel 37mm inverted Showa^TM fork
with fully adjustable
leading-axle
10.8 inches of travel 37mm inverted Showa^TM fork
with fully adjustable
leading-axle
10.8 inches of travel
-Rear Pro-Link Kayaba single shock
with spring preload, 20 position
rebound damping,
8 position (low speed) and 2-turns
(high-speed) compression damping
adjustability,
12.6 inches of travel Pro-Link Showa single shock
with spring preload, 17 position
rebound damping,
13 position (low speed) and 3.5-turns
(high-speed) compression damping
adjustability,
12.9 inches of travel Pro-Link Kayaba single shock
with spring preload, 26 position
rebound damping,
8 position (low speed) and 2-turns
(high-speed) compression damping
adjustability,
12.6 inches of travel Pro-Link Showa single shock
with preload, and fully adjustable
damping
10.8 inches
of travel Pro-Link Showa single shock
with preload, and fully adjustable
damping
11.5 inches
of travel
Tires:
-Front 80/100-21 80/100-21 80/100-21 70/100-17 70/100-19
-Rear 110/100-18 110/90-19 100/90-19 90/100-14 90/100-16
Brakes:
-Front Single disc with
twin piston caliper Single disc with
twin piston caliper Single disc with
twin piston caliper Single disc with
twin piston caliper Single disc with
twin piston caliper
-Rear Single disc with
single piston caliper Single disc with
single piston caliper Single disc with
single piston caliper Single disc with
single piston caliper Single disc with
single piston caliper
Wheel base 58.5" 58.3" 57.7" 49.1" 50.7"
Seat Height 36.9" 37.2" 37.1" 32.8" 34.2
Dry Weight 222.7 lbs 213.8 lbs 192.9 lbs 142.8 lbs 143.5 lbs
Fuel Capacity 2.4 gal. 2.0 gal. 2.0 gal. 1.5 gal. 1.5 gal.
Color Red Red Red Red Red
Note California version differs slightly due to emissions equipment. Consult owner's manual for optional racing parts. Consult owner's manual for optional racing parts. California version differs slightly due to emissions equipment. California version differs slightly due to emissions equipment.

Visiteur # / Visitor #

Return to my Bike pages.

This page last modified on: April 21^th, 1999 by: Novellus.

	CR500R	CR250R	CR125R	CR80R	CR80RB
Engine Type	Liquid cooled, single cylinder, two stroke	Liquid cooled, single cylinder, two stroke with HPP	Liquid cooled, single cylinder, two stroke with HPP	Liquid cooled, single cylinder, two stroke	Liquid cooled, single cylinder, two stroke
Displacement	491cc	249cc	125cc	83cc	83cc
Bore & Stroke	89 x 79mm	66.4 x 72mm	54 x 54.5mm	47 x 47.8mm	47 x 47.8mm
Compression Ratio	6.8 : 1	8.7 : 1	8.8 : 1	8.4 : 1	8.4 : 1
Carburetion	38mm flatslide	38mm flatslide	36mm flatslide	28mm piston-valve	28mm piston-valve
Ignition	Solid state CD with electronic advance	Solid state map-type digital with electronic advance	Solid state map-type digital with electronic advance	Solid state CD with electronic advance	Solid state CD with electronic advance
Starting	Kick	Kick	Kick	Kick	Kick
Transmission	Close ratio 5 speed	Close ratio 5 speed	Close ratio 5 speed	Close ratio 6 speed	Close ratio 6 speed
Final Drive	#520 Chain; 14T/49T	#520 Chain; 13T/50T	#520 Chain; 13T/51T	#420 Chain; 15T/49T	#420 Chain; 15T/55T
Suspension:
-Front	46mm inverted Kayaba^TM fork with 20 position compression and 18 position rebound damping, 12.2 inches of travel	47mm inverted Showa^TM fork with 16 position compression and 16 position rebound damping, 12.4 inches of travel	46mm inverted Kayaba^TM fork with 20 position compression and 18 position rebound damping, 12.1 inches of travel	37mm inverted Showa^TM fork with fully adjustable leading-axle 10.8 inches of travel	37mm inverted Showa^TM fork with fully adjustable leading-axle 10.8 inches of travel
-Rear	Pro-Link Kayaba single shock with spring preload, 20 position rebound damping, 8 position (low speed) and 2-turns (high-speed) compression damping adjustability, 12.6 inches of travel	Pro-Link Showa single shock with spring preload, 17 position rebound damping, 13 position (low speed) and 3.5-turns (high-speed) compression damping adjustability, 12.9 inches of travel	Pro-Link Kayaba single shock with spring preload, 26 position rebound damping, 8 position (low speed) and 2-turns (high-speed) compression damping adjustability, 12.6 inches of travel	Pro-Link Showa single shock with preload, and fully adjustable damping 10.8 inches of travel	Pro-Link Showa single shock with preload, and fully adjustable damping 11.5 inches of travel
Tires:
-Front	80/100-21	80/100-21	80/100-21	70/100-17	70/100-19
-Rear	110/100-18	110/90-19	100/90-19	90/100-14	90/100-16
Brakes:
-Front	Single disc with twin piston caliper	Single disc with twin piston caliper	Single disc with twin piston caliper	Single disc with twin piston caliper	Single disc with twin piston caliper
-Rear	Single disc with single piston caliper	Single disc with single piston caliper	Single disc with single piston caliper	Single disc with single piston caliper	Single disc with single piston caliper
Wheel base	58.5"	58.3"	57.7"	49.1"	50.7"
Seat Height	36.9"	37.2"	37.1"	32.8"	34.2
Dry Weight	222.7 lbs	213.8 lbs	192.9 lbs	142.8 lbs	143.5 lbs
Fuel Capacity	2.4 gal.	2.0 gal.	2.0 gal.	1.5 gal.	1.5 gal.
Color	Red	Red	Red	Red	Red
Note	California version differs slightly due to emissions equipment.	Consult owner's manual for optional racing parts.	Consult owner's manual for optional racing parts.	California version differs slightly due to emissions equipment.	California version differs slightly due to emissions equipment.
